Aluminum Drainage Trench Cover | Lightweight & Corrosion‑Resistant | Anti‑Theft Hinges | Landscape/Commercial/Coastal Drainage

In high‑aesthetic and corrosive environments such as landscape boulevards, commercial plazas, and coastal walkways, traditional cast iron covers are heavy and prone to rust, stainless steel covers are costly, and galvanized carbon steel covers struggle to last in humid conditions.

Aluminum drainage trench covers – the perfect balance of light weight and corrosion resistance, combining aesthetics with practicality.

With 15 years of expertise in aluminum deep‑processing, we operate fully automatic press‑locking lines and in‑house anodizing/powder coating workshops. From drainage around commercial complexes to coastal landscape roads, from high‑end residential areas to light‑duty factory access ways, we deliver premium trench cover solutions that weigh only 1/3 of steel, never rust, and require 30 years of maintenance‑free service.

---

 What Is an Aluminum Drainage Trench Cover?

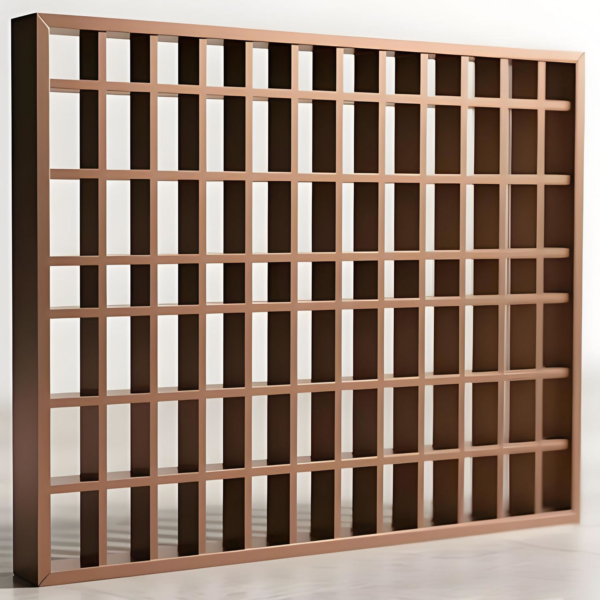

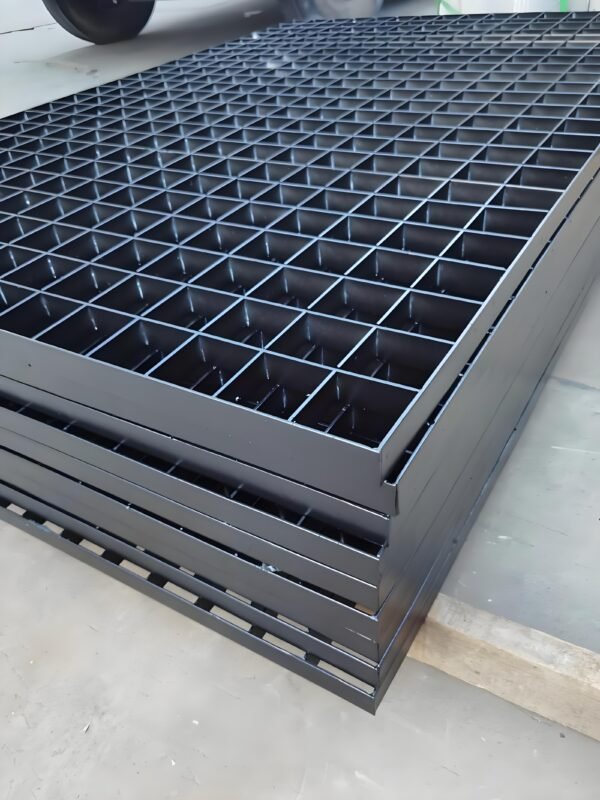

An aluminum drainage trench cover (also called aluminum gully grate or aluminum rain grate) is a grid‑type cover made of 6063-T6 or 6061 aluminum alloy bearing bars and cross bars, manufactured by press‑locking (or welding). The surface can be anodized, powder coated, or fluorocarbon coated.

Compared with cast iron, galvanized steel, or stainless steel covers, the core advantages of aluminum trench covers are: extremely low density (1/3 of steel), natural corrosion resistance (aluminum forms a self‑generating dense oxide film), and a wide choice of surface colors. They are ideal for applications where weight, corrosion protection, and appearance are all critical.

---

Five Core Advantages – Why Choose Aluminum Drainage Trench Covers?

 ✅ Lightweight & High Strength – Only 1/3 the Weight of Steel

Aluminum density is approx. 2.7 g/cm³ – just one‑third of steel. For the same dimensions, an aluminum trench cover weighs only 30–35% of a carbon steel cover. This means:

• No heavy lifting equipment needed for handling and installation – manual operation is easy.

• Lower requirements for trench support structures – saving civil construction costs.

• One person can easily lift the cover during maintenance.

Despite its light weight, rational cross‑section designs (plain, T‑section, I‑section) allow aluminum covers to withstand pedestrian loads (2.5 kN/m²) up to light vehicle traffic (5 tons).

 ✅ Superior Corrosion Resistance – 30 Years No Rust

Aluminum naturally forms a dense aluminum oxide protective film (thickness approx. 2–5 μm) in air, effectively resisting moisture, rain, mild acids/alkalis, and salt spray. No coating is needed for a 30+ year maintenance‑free service life.

For coastal high‑salt environments, we recommend anodizing or fluorocarbon coating to further thicken the protective layer, extending corrosion life to over 50 years.

✅ Drainage Efficiency up to 83.3% & Anti‑Slip Options

The grid structure provides up to 83.3% open area, allowing rainwater and standing water to drain quickly and preventing surface flooding. Multiple anti‑slip finishes are available:

 ✅ Rich Color Options – Elevate the Environment

A major highlight of aluminum trench covers is the variety of surface finishes. We offer:

By customizing the color, aluminum trench covers blend seamlessly with surrounding paving and landscape design – eliminating the “gray and obtrusive” look of traditional covers.

✅ Anti‑Theft Hinge Design – Safe & Convenient

To address cover theft in public areas, we offer stainless steel hinge connections. The cover is attached to the frame via high‑strength hinges, allowing it to open upward 120° for easy trench cleaning, while preventing easy removal – eliminating theft at the source.

For non‑theft areas, embedded installation or bolt fixing is also available – simple and economical.

---

 Applications – From Landscape to Light‑Duty Vehicles

Thanks to its light weight, corrosion resistance, and aesthetics, aluminum trench covers are widely used where weight, protection, and appearance matter:

Note: Aluminum trench covers are not suitable for heavy truck lanes (e.g., container trucks, mining vehicles). For loads over 20 tons, please choose heavy‑duty steel or stainless steel covers.

---

Specifications & Selection Guide

 Common Bearing Bar Sizes

Grid Spacing

 Manufacturing Process

 Custom Sizing

We support deep customization based on your trench dimensions:

• Length & width: any size (single panel length ≤2000mm recommended)

• Rectangular, curved, irregular shapes

• With hinges, locks, lift handles

• Surface color: any RAL code

Installation Guide

Installation Methods

 Key Installation Points

• Support surface: Must be flat, solid, with levelness deviation ≤3 mm/m.

• Expansion gap: Leave 5–8 mm gap between cover and frame (aluminum linear expansion coefficient ~23×10⁻⁶/°C).

• Load direction: Bearing bars must be perpendicular to walking or vehicle travel direction.

• Anti‑slip: Use serrated or I‑section bars for wet or sloped areas.

• Hinge maintenance: Lubricate hinges periodically for smooth operation.

• Avoid galvanic corrosion: Use stainless steel or aluminum fasteners; prevent direct contact with copper or plain steel.

 Acceptance Criteria

• Flatness: Height difference between cover and ground ≤ ±2 mm (aluminum achieves higher precision).

• Fixation: No wobbling, no abnormal noise.

• Drainage test: Water should drain completely within 10 seconds.

• Visual inspection: No scratches, uniform coating, consistent color.

---

Why Choose Us as Your Long‑Term Supplier?

 ✅ Full In‑House Production – Guaranteed Quality

We have a complete vertical chain: aluminum extrusion, precision cutting, automatic press‑locking, and surface finishing. All raw materials are GB‑compliant 6063-T6/6061 prime grade, with material test certificates (MTC) ensuring chemical and mechanical properties.

✅ Dual Process Lines – Flexible Solutions

We operate both press‑locked and welded aluminum grating lines. Depending on your load, aesthetic, and budget requirements, we recommend the most economical process.

 ✅ Large In‑House Coating Workshop – Unlimited Custom Colors

Our own anodizing, powder coating, and fluorocarbon coating lines can handle extra‑long workpieces. Any RAL color is available, with guaranteed color consistency and coating adhesion.

✅ Strict Quality Control

• Material verification: Spectrometer analysis report per batch.

• Dimensional accuracy: Length tolerance ≤ ±2 mm, diagonal tolerance ≤ ±2 mm.

• Coating inspection: Thickness, color difference, adhesion (cross‑cut test) strictly controlled.

• Load testing: Available on request.

✅ Extensive Project Experience

Our aluminum trench covers have been used in:

• A large commercial complex in China – surrounding drainage (dark grey powder coating).

• Coastal landscape avenue in Hainan – seafront walkway rain grates (fluorocarbon coating, salt‑spray resistant).

• High‑end residential community – garden landscape drainage (wood grain transfer to match boardwalk).

• Multiple municipal parks – path drainage covers (silver anodized).

---

 Quick Comparison – Aluminum vs Other Materials

---

Frequently Asked Questions

Q1: Can aluminum trench covers handle vehicles?
A: Yes, but only light vehicles (cars, SUVs, small trucks with axle load ≤5 tons). For heavy trucks or container trailers, please choose heavy‑duty steel or stainless steel covers. Recommended spec: bar ≥30×5mm, bar pitch ≤30mm, span ≤1200mm.

Q2: Can aluminum covers be stolen?
A: We offer stainless steel hinge anti‑theft design – the cover is fixed to the frame and cannot be easily removed. For higher security, add a lock.

Q3: Will the surface color fade?
A: Anodizing does not fade. Powder coating may slightly fade after 5–10 years of outdoor exposure (color difference within limits). Fluorocarbon coating offers ultra‑high UV resistance – no noticeable fading for over 20 years.

Q4: How does the price compare with cast iron?
A: Initial cost of aluminum is about 1.5–2 times that of cast iron. However, considering cast iron covers need frequent replacement (every 5–10 years) and aluminum covers are maintenance‑free for 30 years, the life‑cycle cost is lower for aluminum.

Q5: Can you customize non‑standard sizes and colors?
A: Absolutely. Provide trench dimensions, load requirements, environment, and color code (e.g., RAL 7016). Our technical team will provide drawings and a quote within 24 hours.

Q6: Are aluminum covers truly durable in coastal environments?
A: Aluminum has better salt‑spray resistance than carbon steel, though slightly less than 316L stainless steel. For coastal high‑salt areas, we recommend 6061 aluminum + fluorocarbon coating – service life over 30 years. For extremely severe conditions (e.g., splash zone), 316L stainless steel is preferred.

---

Get Your Custom Aluminum Drainage Trench Cover Solution Today

Stop struggling with heavy covers, frequent rust replacement, and color mismatches.

Choose our aluminum drainage trench covers – the perfect combination of lightweight, 30‑year maintenance‑free, and custom colors.

👉 Contact our engineers now – get free selection advice, material samples, and CAD drawings with your inquiry today!

---
