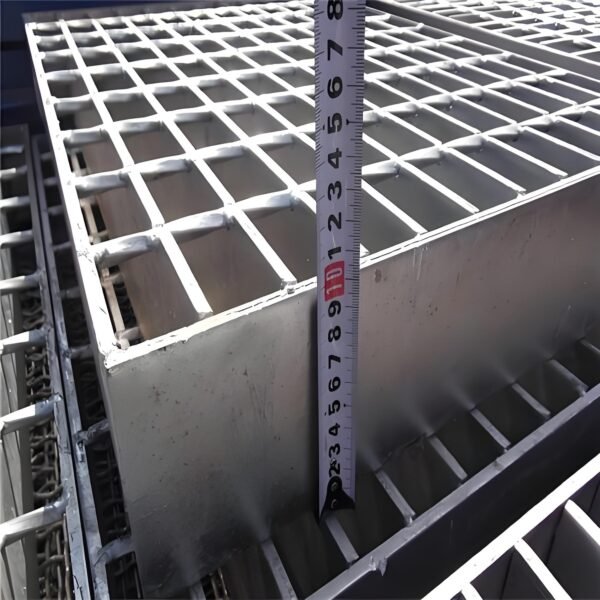

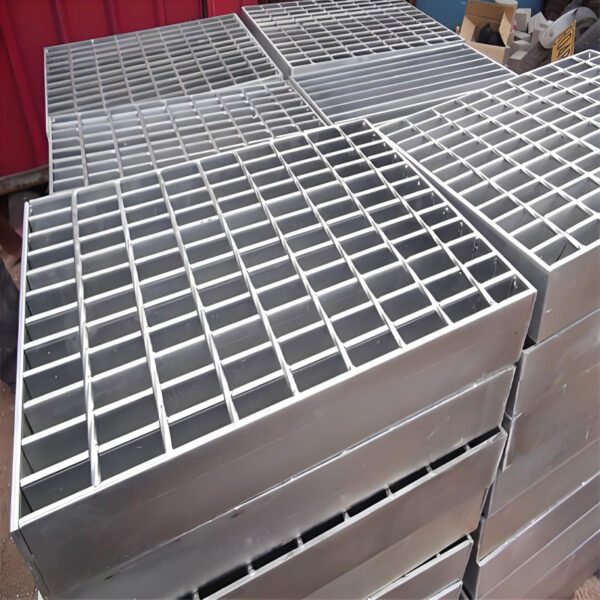

What is Heavy Duty Steel Grating?
Heavy duty steel grating is a steel grating product specifically designed and manufactured for heavy-load applications. Compared to ordinary steel grating (typically using 3-5mm thick flat bars), heavy duty steel grating is manufactured using thicker (6mm, 8mm, 10mm, 12mm, or even 20mm) and wider (65mm-200mm) flat bars as load-bearing elements.
Heavy duty steel grating can be manufactured using welded or press-locked processes, suitable for airports, highways, industrial platforms, ports and docks, mines, coal mine road bridges, and other applications with special requirements.
Four Core Advantages of Heavy Duty Steel Grating
✅ Ultimate Load Capacity – 100+ Tons/m²
The core value of heavy duty steel grating lies in its extraordinary load-bearing capability. Depending on bar specifications and spacing, our heavy duty steel grating can withstand point loads ranging from 100 kg to 100,000 kg.
Specific load parameters are as follows:
| Bar Specification | Max Span | Concentrated Load | Uniform Load |
| 5mm Thick (Standard) | 4 feet (1.2m) | 1,200 lb (544 kg) | 350 psf (1,709 kg/m²) |
| 6mm Heavy Duty | 6 feet (1.8m) | 2,500 lb (1,134 kg) | 600 psf (2,930 kg/m²) |
| 10mm Extra Heavy | 8 feet (2.4m) | 5,000 lb (2,268 kg) | 850 psf (4,150 kg/m²) |
| 20mm Special Heavy | Custom | 100+ tons | Custom design |
Note: Above are engineering test data; actual load capacity depends on specific conditions and requires calculation.
✅ 300% Higher Impact Resistance – Heavy Machinery Operates with Confidence
Not only does heavy duty steel grating excel in static load capacity, its impact resistance is over 3 times that of ordinary grating. At ports and docks, container cranes constantly lift and lower; in mining areas, trucks loaded with ore repeatedly roll over—these dynamic impacts are fatal tests for ordinary grating, but for heavy duty steel grating, they’re routine operating conditions.
Third-party testing shows that under a 400 lb (181 kg) concentrated load, our heavy duty steel grating deflects only 0.1 inches (2.54mm) —60% less than aluminum grating.
✅ Press-Locked Process Option – Prevents Bar Tilting & Instability
For heavy-load applications with vehicle traffic, we strongly recommend the press-locked manufacturing method. The press-locked process effectively prevents load-bearing bars from tilting and becoming unstable under ultimate loads, avoiding deformation.
Heavy-load press-locked steel grating is formed through slotting,inserting, and pressing under 1,200 tons of pressure, with cross bars and bearing bars permanently locked together, creating a true bidirectional load-bearing structure with over 50% increased lateral stiffness.
✅ Serrated Anti-Slip Design – Friction Coefficient 0.85+
For heavy-load steel grating subjected to vehicle traffic, we recommend selecting serrated anti-slip grating to provide better friction. Both welded and press-locked steel grating can utilize serrated flat bars.
The serrated surface provides a friction coefficient of over 0.85, maintaining stable grip even in oily or wet environments. According to US NSCI safety audit data, workplace slip accidents decreased by 72% after adopting serrated steel grating.
Four Series Specifications – Precisely Matching Heavy-Load Scenarios
| Series | Bar Specifications | Bar Spacing | Core Features | Application Scenarios |
| Heavy-Duty Series | Width 65mm-200mm Thickness 5mm-20mm |
30-60mm | Ultimate load capacity, can accommodate large truck traffic | Large freight yards, docks, coal mine road bridges, heavy machinery platforms |
| Economical Light Type | Thickness 3-5mm | 40mm | Most economical and lightweight; ideal for small-span applications | Warehouse shelving, mezzanine floors, light-duty walkways |
| Mining Anti-Splash Type | Thickness 5-8mm | 60mm | Solves mineral splash problems; often specified for mining processing | Crusher area flooring, conveyor walkways, ball mill areas, processing plants |
| Industrial General Type | Thickness 5-8mm | 30mm | Most widely used in industrial applications; maximum resistance to surface impact | Power plants, chemical plants, wastewater treatment plant platforms and walkways |
Application Scenarios: Comprehensive Coverage from Ports to Mining
Leveraging its ultimate load capacity and impact resistance, heavy duty steel grating is widely used in various heavy-load scenarios:
| Field | Application Scenarios | Load Grade |
| Ports & Docks | Container loading platforms, dock front walkways, heavy equipment operating areas | ⭐⭐⭐⭐⭐ 100-ton class |
| Mining | Crusher system platforms, conveyor walkways, ball mill areas, mining vehicle passages | ⭐⭐⭐⭐⭐ 80-100 ton class |
| Iron & Steel Metallurgy | Steelmaking platforms, furnace front operating areas, billet yards | ⭐⭐⭐⭐ 50-80 ton class |
| Heavy Manufacturing | Heavy machinery assembly lines, test platforms, logistics passages | ⭐⭐⭐⭐ 30-50 ton class |
| Power & Energy | Power plant boiler platforms, coal bunker passages, wind power inspection platforms | ⭐⭐⭐ 10-30 ton class |
| Road Transportation | Bridge inspection walkways, tunnel pipe gallery, toll station platforms | ⭐⭐⭐ 10-20 ton class |
Specifications & Selection Guide
Common Materials & Specifications
| Parameter | Standard Range | Heavy Duty Range |
| Bearing bar height | 20mm-50mm | 65mm-200mm |
| Bearing bar thickness | 3mm-5mm | 5mm-20mm |
| Bar spacing | 30mm, 40mm, 60mm | 30mm, 40mm, 60mm (30mm recommended for heavy loads) |
| Cross bar spacing | 50mm, 100mm | 50mm, 100mm (50mm recommended for heavy loads) |
| Material options | Q235B | Q355B high-strength alloy steel (50% higher yield strength) |
Common Model Examples
| Model | Bar Specification | Bar Spacing | Application Scenarios |
| G505/30/100 | 50×5mm | 30mm | Standard heavy-load industrial platforms, walkways |
| G605/30/50 | 60×5mm | 30mm | Power plant boiler platforms, medium-load heavy areas |
| G655/30/50 | 65×5mm | 30mm | Ports, docks, heavy machinery operating areas |
| G756/40/50 | 75×6mm | 40mm | Mining platforms, heavy-load conveyors |
| G1008/30/50 | 100×8mm | 30mm | Ultra-heavy freight yards, coal mine road bridges |
| G15010/30/50 | 150×10mm | 30mm | Extreme heavy-load, special conditions |
| G20020/30/50 | 200×20mm | 30mm | Military-grade, extreme heavy-load |
Note: Suffix “S” can be added to indicate serrated anti-slip surface.
Manufacturing Process Options
| Process | Features | Application Scenarios |
| Welded Type | Formed by welding twisted square steel to large-size bearing bars under high temperature and pressure | Standard heavy-load platforms, walkways |
| Press-Locked Type | Slotted After plugging in high-pressure pressing, no weld points, effectively prevents bearing bar tilting and instability | Vehicle traffic loads, impact loads, applications requiring high stability |
Galvanized Coating Requirements
Heavy duty steel grating has extremely strict galvanizing requirements:
Bar thickness ≥5mm: Average zinc coating weight ≥ 610 g/m² (approx. 85μm) after galvanizing
Bar thickness <5mm: Average zinc coating weight ≥ 460 g/m² (approx. 65μm) after galvanizing
We strictly implement GB/T 13912-2008 or ASTM A123 standards and provide third-party test reports.
Why Do Global Buyers Choose Us as Their Long-Term Supplier?
✅ Ultra-Thick Bar Production Capacity – Limitless Specifications Customizable
We possess the capability to roll and process 15mm and 20mm ultra-thick flat bars, with bar widths up to 200mm, meeting any extreme working conditions requirements. This is a production threshold ordinary steel grating manufacturers cannot reach.
✅ 1,200-Ton Ultra-High Pressure Equipment – Ensuring Permanent Press-Lock Integrity
Heavy-load press-locked grating must be pressed tightly under 1,200 tons of pressure to guarantee never loosening of the interlocking between bars. We possess multiple 1,200-ton large-scale presses, ensuring every heavy-duty grating panel achieves ultimate press-lock strength.
✅ Full Industry Chain Control – From Steel to Finished Product
We have established strategic partnerships with major domestic steel enterprises, prioritizing stable supply of Q355B high-strength alloy steel. From raw material arrival to finished product shipment, every process is strictly controlled, ensuring consistent material properties and reliable performance for every batch.
✅ Rigorous Quality Inspection System
Material guarantee: Third-party material certificates provided—100% compliance with yield strength and tensile strength requirements
Weld strength testing: Shear resistance 20-40kN/m², 100% weld penetration
Press-lock strength testing: Batch sampling for pull-out resistance tests—ensuring interlocking points meet bearing capacity standards
Galvanized coating inspection: Zinc coating weight ≥610 g/m², salt spray test exceeding 2,000 hours
Load testing: On-site load testing available upon request to verify design specifications
✅ Participation in National Key Projects
Our heavy duty steel grating has been applied in multiple national key engineering projects:
Shenzhen-Zhongshan Bridge: Undersea tunnel inspection utility corridor and artificial island grating
Hong Kong-Zhuhai-Macao Bridge: Inspection walkways and platforms
Ningbo-Zhoushan Port: Container terminal heavy-load platforms
Port Hedland, Australia: Iron ore export terminal
Multiple large mines: Crusher system platforms, conveyor walkways
In 2024, our steel grating products were honored with the National Manufacturing Single-item champion Product award, fully demonstrating our comprehensive strength.
Heavy Duty Steel Grating Design Key points
Load Capacity Calculation
The design of heavy duty steel grating must consider the following factors:
Live load: Dynamic loads from personnel, equipment, vehicles, etc.
Dead load: Grating self-weight, fixed equipment, etc.
Impact factor: Typically 1.2-2.0 depending on operating conditions
Deflection control: Typically required ≤ 1/200 or 1/240 of span
Edge Banding & Reinforcement
For heavy-load steel grating subjected to vehicle traffic, to achieve better lateral load capacity, it is generally recommended to edge-band both ends of grating panels.
Installation Method Options
| Method | Features | Application Scenarios |
| Welded Fixing | Permanent connection, highest strength | Permanent platforms, no disassemble requirements |
| Bolt Fixing | Detachable,convenient for maintenance | Locations requiring regular inspection |
| Clamp Fixing | Does not damage galvanized coating | Applications with high corrosion resistance requirements |
How to Select the Right Heavy Duty Steel Grating for Your Project
Step 1: Determine Application Scenario & Load
Ports, docks, large truck traffic → Heavy-Duty Series (65-200mm bars) + press-locked process
Mining, mineral splash → Mining Anti-Splash Type (60mm spacing) + serrated anti-slip
Power plants, chemical plants, standard heavy loads → Industrial General Type (30mm spacing) + welded process
Vehicle traffic loads, impact loads → Press-locked process + serrated anti-slip
Step 2: Determine Material & Surface Treatment
Standard heavy-load environments → Q355B high-strength alloy steel + hot-dip galvanized (610 g/m²)
Marine environments, high corrosion → 316L stainless steel + electro-polishing
Ultra-high slip resistance requirements → Serrated flat bars + hot-dip galvanized
Step 3: Provide Detailed Operating Parameters
Load magnitude (concentrated load / uniform load)
Support span
Application environment (indoor/outdoor, corrosiveness, humidity)
Whether impact loads exist
Whether slip resistance is required
Step 4: Contact Us for Professional Solutions
Provide your operating parameters and requirements.
Our technical team will deliver professional solutions, load calculation documents, and quotations within 24 hours.
Procurement Guide
Information Required for Quotation
To obtain an accurate quotation, please provide the following information:
Specification model: e.g., G505/30/100, or bar dimensions and spacing
Size requirements: Length, width, quantity
Material requirements: Q235B / Q355B / 304 / 316L
Surface treatment: Hot-dip galvanized / painted / untreated
Special requirements: Edge banding, openings, serrated anti-slip, etc.
Load requirements: Concentrated load, uniform load, span
Delivery cycle
Standard specifications: 7-15 days
Heavy-duty / special-shaped specifications: 15-25 days (production scheduling required)
Rush orders: Negotiable
