Hot-Dip Galvanized Platform Steel Grating – The Safe Load-Bearing Foundation for Industrial Operating & Maintenance Platforms
Hot-dip galvanized platform steel grating is specifically designed for industrial platform applications. It is made of high-strength bearing bars and cross bars joined by electric resistance welding, then hot-dip galvanized. Unlike standard walkway grating, platform steel grating must withstand equipment weight, dense foot traffic, forklift operation, and other complex loads. Therefore, it has higher design requirements in terms of bar height, grid spacing, edge treatment, and more.

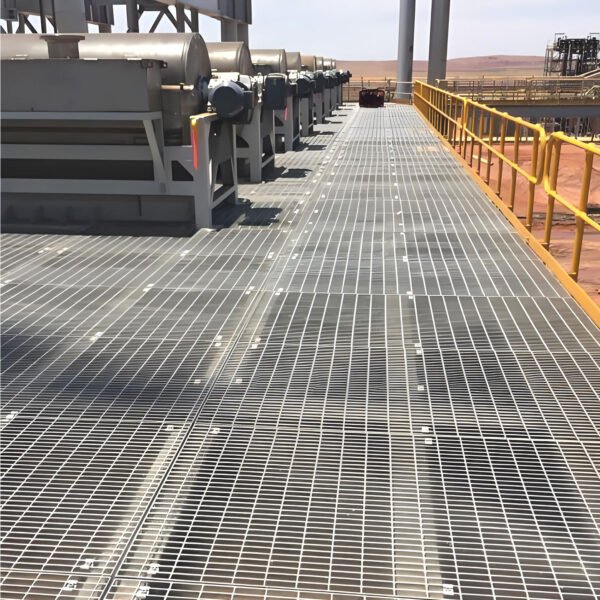

Hot-dip galvanized platform steel grating offers high load capacity, anti slip surface, corrosion resistance (20–30 years life), ventilation & light transmission, and easy installation. It has become the standard choice for chemical plant operating platforms, power plant boiler platforms, steel mill maintenance platforms, offshore drilling platforms, and many other industrial scenarios.
As a professional manufacturer of hot-dip galvanized platform steel grating, we provide one stop service from load calculation, specification selection, welding forming, hot-dip galvanizing, to on site installation guidance. Below is a complete technical introduction to platform steel grating.
1. Load Classes & Selection Principles for Platform Steel Grating
The load capacity of platform steel grating is determined by bar height, bar thickness, bar pitch, and support span. The table below lists common platform load classes and recommended models:
| Load Class | Reference Load | Typical Scenario | Recommended Model | Max Recommended Span |
| Light | ≤2 t/m² | Personnel access only | G203/30/100, G255/40/100 | 1000mm |
| Medium | 3–5 t/m² | Personnel + small equipment | G325/30/100, G325/40/100 | 1200mm |
| Heavy | 5–8 t/m² | Forklift, medium equipment | G405/30/100, G405/40/100 | 1500mm |
| Extra Heavy | 8–15 t/m² | Heavy machinery base, container traffic | G505/30/100, G655/40/100 | 1800mm |
Selection Principles:
Every 10mm increase in bar height increases load capacity by approx. 30–40%
Reducing bar pitch from 40mm to 30mm increases capacity by approx. 25%
Doubling the support span increases deflection by approx. 4 times – control span strictly
Recommended design deflection ≤1/200 of span
2. Specification & Load Table for Hot-Dip Galvanized Platform Steel Grating
The table below lists the most common specifications for platform steel grating. All models can be customized.
| Model | Bar Size (mm) | Bar Pitch (mm) | Cross Bar Pitch (mm) | Unit Weight (kg/m²) | Suitable Load | Typical Platform Type |
| G203/30/100 | 20×3 | 30 | 100 | 28 | ≤2 t/m² | Walkway access platform, fencing platform |
| G255/40/100 | 25×5 | 40 | 100 | 40 | 3–4 t/m² | Workshop platform, equipment access |
| G325/30/100 | 32×5 | 30 | 100 | 55 | 5–7 t/m² | Chemical plant platform, power plant boiler platform |
| G325/40/100 | 32×5 | 40 | 100 | 48 | 4–6 t/m² | General industrial platform |
| G405/30/100 | 40×5 | 30 | 100 | 70 | 7–9 t/m² | Heavy equipment maintenance platform, forklift aisles |
| G405/40/100 | 40×5 | 40 | 100 | 60 | 6–8 t/m² | Metallurgy platform, heavy load areas |
| G505/30/100 | 50×5 | 30 | 100 | 85 | 9–12 t/m² | Port machinery platform, container areas |
| G655/40/100 | 65×5 | 40 | 100 | 95 | 12–15 t/m² | Mining heavy platform, oversized equipment base |
Specification Notes:
Bar height range: 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 75mm, 100mm
Bar thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm
Bar surface: Plain flat bar (standard), serrated (anti slip), I bar (lightweight)
Cross bars: 6×6mm or 8×8mm twisted square bars, pitch 50mm or 100mm
3. Full Product Line of Hot-Dip Galvanized Platform Steel Grating
3.1 Standard Industrial Platform Steel Grating

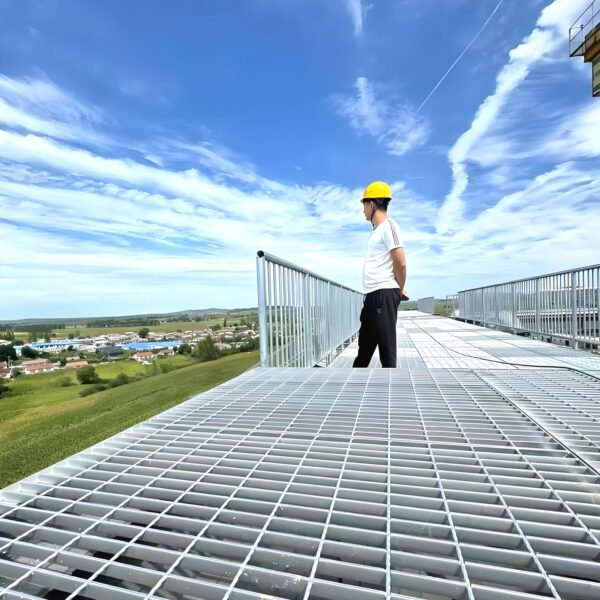

The most common platform type, using G325/30/100 or G405/40/100 models, bar height 32–40mm, pitch 30–40mm. Suitable for most industrial operating platforms, equipment maintenance platforms, tank top platforms. Edges can be banded with channel or angle steel for increased rigidity.
Common models: G325/30/100, G405/40/100, G325/40/100
Features: Best balance of capacity and cost, most widely used.
Applications: Chemical reactor platforms, power plant boiler maintenance platforms, steel mill continuous casting platforms
3.2 Heavy-Duty Platform Steel Grating
Using G405/30/100, G505/30/100 or G655/40/100 models, bar height 40–65mm, pitch 30mm. Designed for forklift traffic, heavy equipment installation, and vehicle passage areas.
Common models: G405/30/100, G505/30/100, G655/40/100
Features: Extremely high load capacity, dense bar pitch (30mm), excellent impact resistance.

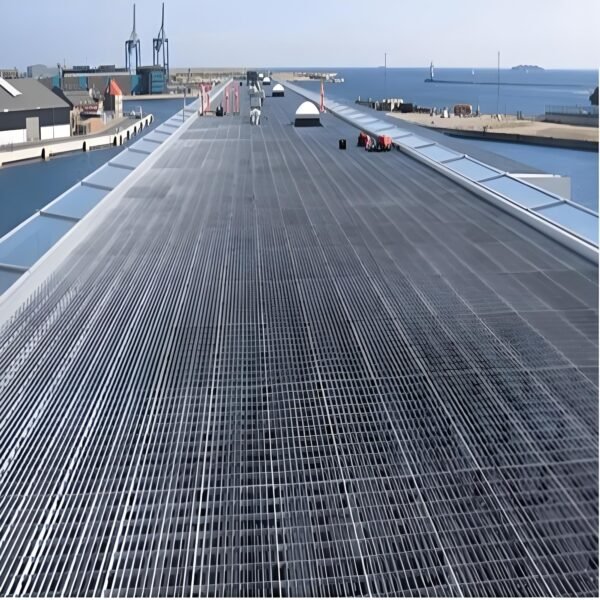

Applications: Heavy machinery maintenance platforms, port loading platforms, mining equipment platforms
3.3 Serrated Anti Slip Platform Steel Grating
Platform surface uses serrated bearing bars (suffix F, e.g., G325/30/100F), increasing slip resistance by over 30%. Ideal for operating platforms in oily, wet, or icy environments.
Common models: G325/30/100F, G405/40/100F, G255/40/100F
Features: Friction coefficient ≥0.6, high safety rating, meets OSHA slip resistance requirements.
Applications: Offshore drilling platforms, oil depot platforms, car wash platforms, meat processing plant platforms
3.4 Composite Platform Steel Grating
A 3–6mm thick checkered plate or flat plate is laid on the platform grating, forming a sealed solid surface. Suitable for preventing small parts from falling, liquid drips, and platforms that require floor covering.
Common models: HF-G325/30/100 composite platform, HF-G405/40/100 composite platform
Features: Combines grating strength with sealing, can be tiled or epoxy coated.
Applications: Precision equipment platforms, pharmaceutical cleanroom platforms, laboratory work platforms
3.5 Custom Shape Platform Steel Grating
Non rectangular platforms such as circles, sectors, rings, trapezoids – CNC cut, bent, welded, and fully hot-dip galvanized.
Common shapes: Sector platforms (corners), circular platforms (towers), ring platforms (tank tops), trapezoidal platforms (around equipment)
Applications: Circular tower operating platforms, sector stair landings, tank top ring maintenance platforms, oval equipment enclosure platforms
4. Key Design Elements for Platform Steel Grating
4.1 Platform Edges & Border Treatment
Edge treatment directly affects safety and rigidity:
Welded border: Weld channel or angle steel around the perimeter for increased rigidity, preventing edge curling.
Toe plate: Install toe plates (hot-dip galvanized steel, height ≥100mm) around platform edges to prevent tool falls.
Safety nosing: Weld anti slip nosing at platform opening edges for personnel safety.
4.2 Platform Cutouts & Equipment Pass Through
Platform grating can be factory or field cut for equipment and piping:
Round holes: For equipment piping – custom diameters, with reinforced border around holes.
Square/rectangular openings: For personnel access or equipment hoisting – install safety railings around openings.
Removable covers: Large openings with hinged grating covers for easy maintenance access.
4.3 Platform Support Structure
Support beam spacing: Typically ≤1200mm (adjust based on load)
Bearing bar direction: Must be perpendicular to support beams
Support bearing length: ≥25mm at each end
4.4 Platform Anti Slip Requirements
Standard platform: Plain flat bars + hot-dip galvanized surface (friction coefficient approx. 0.5)
Wet/oily platforms: Serrated bars (friction coefficient ≥0.6) or add anti slip strips
Inclined platforms (>10°): Serrated bars mandatory, bar pitch ≤30mm
5. Production Process of Hot-Dip Galvanized Platform Steel Grating
Our plant strictly follows the process below to ensure every product meets export standards:
- Raw material inspection– MTC for bars and cross bars (Q235B/A36/S235JR)
- Automatic welding– Fully automatic large pressure welding line, weld penetration ≥2mm, high shear strength
- Leveling & straightening– Hydraulic leveling ensures flatness ≤3mm/m
- Cutting & hole punching– Plasma/laser cutting, CNC hole punching, accuracy ±1mm
- Edge finishing– Welded border, edge banding, toe plates, etc.
- Hot-dip galvanizing:
Pretreatment: Degreasing → Pickling → Fluxing
Galvanizing: Zinc bath 445–465°C, immersion 2–4 minutes
Post-treatment: Centrifuging/air knife → Passivation & cooling
Coating thickness: ≥65μm (typical 65–85μm, can be custom thickened to >100μm)
- Final inspection– Coating thickness test, adhesion test, full visual inspection, flatness check
Quality commitment: Each batch includes material test certificate and coating thickness test report. Third party inspection (SGS/BV/TÜV) available.
6. Installation & Fixing of Hot-Dip Galvanized Platform Steel Grating
6.1 Welding Fixation (Permanent Platform)
Tack weld or full weld platform grating to support beams around perimeter
Grind welds and touch up with zinc-rich primer (≥70% zinc)
6.2 Mounting Clip Fixation (Removable Platform)
Use M type, C type or G type hot-dip galvanized mounting clips
Minimum 4 clips per platform panel (one at each corner)
Clip bolt torque: 20–30 N·m
6.3 Bolted Fixation (Heavy Platform)
Use hot-dip galvanized bolts and hold down plates
Suitable for platforms subject to vibration loads
6.4 Installation Notes
Bearing bars must be perpendicular to support beams
Support beam spacing must not exceed design value
Leave 5–10mm thermal expansion gaps between panels
Toe plates (height ≥100mm) must be installed around platform edges
Check all fasteners after installation
7. Typical Application Industries for Hot-Dip Galvanized Platform Steel Grating
| Industry | Recommended Model | Platform Characteristics | Key Requirements |
| Petrochemical | G325/30/100F serrated | Anti slip, oil resistant, explosion proof | Serrated, heavy duty |
| Power & Energy | G405/40/100 | High temperature, outdoor, frequent maintenance | Heat resistant, easy removal |
| Steel & Metallurgy | G405/30/100 | High heat, heavy impact, molten slag | Heavy duty, thick bars |
| Marine Engineering | G325/30/100F thick coating | Salt spray, wet, heavy load | Serrated, coating ≥85μm |
| Wastewater Treatment | G255/40/100 | Humid, mild corrosion | Fully galvanized, anti slip |
| Food & Pharma | Closed or composite | Hygiene, drip prevention | Composite sealed, easy clean |
| Mining & Ports | G505/30/100 | Extra heavy load, impact | High bars, dense pitch |
8. Customization & Procurement Guide
As a direct manufacturer of platform steel grating, we offer comprehensive custom services:
✅ Material: Q235B, ASTM A36, S235JR, S355JR, Q355B
✅ Bearing bar sizes: Height 20–100mm, thickness 3–10mm, any combination
✅ Grid spacing: Bar pitch 15/30/40/60mm, cross bar pitch 50/100mm
✅ Surface treatment: Standard HDG (65–85μm), thick HDG (85–120μm), HDG + powder coating
✅ Edge finishing: Welded border (channel/angle/flat bar), toe plates, safety nosing
✅ Cutout customization: Round holes, square holes, slots – from CAD drawings
✅ Custom shapes: Sector, circle, trapezoid, ring, etc.
✅ Accessories: HDG mounting clips, stainless steel bolts, toe plates, handrail posts
Load calculation service: We provide platform grating load span tables and deflection verification.
Packaging: Steel banding + wooden pallet (export option: ISPM15 compliant plywood crates)
Lead time: ≤500㎡ → 7–10 days; >1000㎡ → 15–20 days
Incoterms: FOB Tianjin/Shanghai/Ningbo, CIF major ports, or EXW factory
