Solar Walkway Grating Factory Direct | Hot-Dip Galvanized | Anti-Slip Serrated Design | Light Transmittance ≥80% | Dedicated for PV Power Plant O&M Walkways
Throughout the 25-year operational life of a photovoltaic power plant, maintenance personnel must step onto roofs or mounting systems countless times for cleaning and inspections. Have you ever considered the cost if a walkway becomes slippery or corrodes?
A single slip-and-fall accident could result in serious injury or even loss of life. One corroded walkway replacement could mean dismantling and reinstalling large areas of solar panels, losing tens of hours of power generation.
Solar Walkway Grating—the O&M lifeline custom designed for photovoltaic power plants.
With 20 years of expertise in steel grating manufacturing, we operate fully automatic pressure welding production lines and large scale hot dip galvanizing workshops. From distributed rooftop PV to large ground mounted plants, from mountainous sites to fishery PV hybrid projects, we deliver PV dedicated walkway solutions featuring 25 year service life, slip resistance coefficient ≥0.6, light transmittance ≥80%, and lifetime maintenance free performance.
What is Solar Walkway Grating?
Solar walkway grating is a grid type walkway product specially developed for photovoltaic power plants. It is manufactured by pressure resistance welding bearing bars and cross bars, followed by hot dip galvanizing.
Its fundamental difference from ordinary industrial steel grating lies in: solar walkway grating must ensure load bearing safety while minimizing shading of PV modules, and it must perfectly match the PV mounting system.
Why Must PV Plants Use Dedicated Walkway Grating?
According to the National Energy Administration, by the end of 2023 China’s cumulative installed PV capacity exceeded 600 GW. This massive scale creates huge demands for routine inspection and maintenance. PV maintenance walkways have become the “lifeline” ensuring safe and efficient plant operation.
Relevant accident statistics show that in a high rise residential PV cleaning operation in the past three years, a worker fell due to loose walkway grating, resulting in direct economic losses of ¥800,000. This painful lesson tells us: solar walkway grating is not an optional accessory—it is an essential safety requirement for both personnel and plant.
Six Core Advantages of Solar Walkway Grating
✅ Excellent Slip Resistance – Friction Coefficient ≥0.6

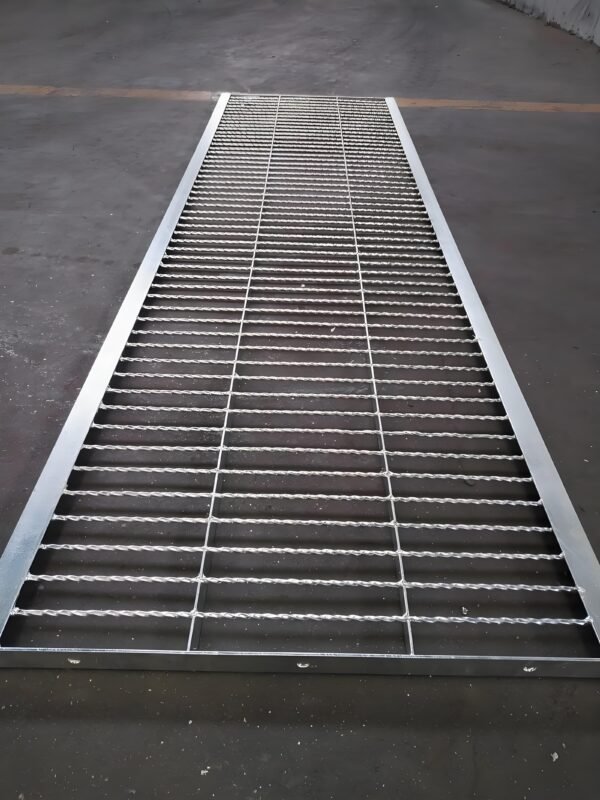

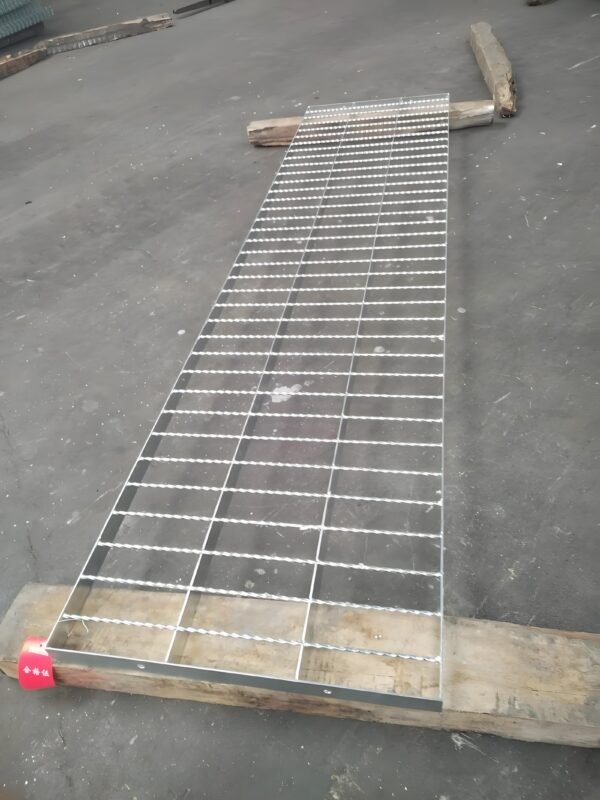

PV plant walkways often have slopes and are affected by rain or dew, making surfaces slippery. To ensure personnel safety, our solar walkway grating uses serrated bearing bars with 1.5–2 mm deep serrated like grooves on the surface, achieving a friction coefficient ≥0.6. Even in rainy or humid conditions, it provides reliable grip for maintenance workers.
Some models can also be equipped with welded stainless steel anti slip strips for enhanced performance.
✅ Strong Load Capacity – Meeting All O&M Scenarios
Solar walkways must bear the weight of personnel and any tools or equipment they carry. Our products are manufactured from high strength carbon steel (Q235B / Q355B) , and the welded structure of bearing bars and cross bars provides high strength and rigidity, ensuring no deformation or fracture during long term use.
| Load Type | Design Standard | Description |
| Dead load | ≤2.5 kN/m² | Walkway self weight + personnel + tools |
| Live load | 1.0 kN per point | Concentrated load during inspection |
| Safety factor | 1.4 | Compliant with GB 50797 |
✅ Light Transmittance ≥80% – Maximizing Power Generation Efficiency

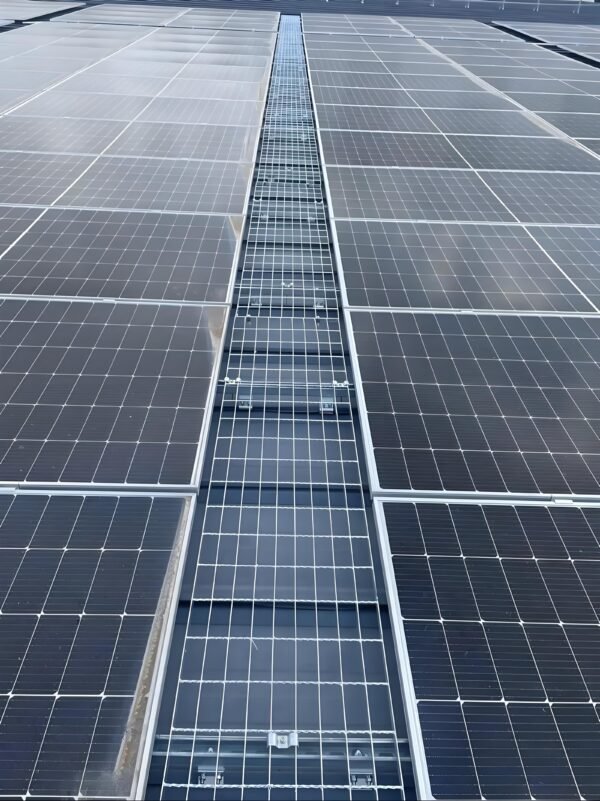

PV maintenance walkways must maintain good light transmittance to ensure sunlight fully reaches the PV modules, avoiding efficiency loss caused by shading. Our grating features a scientifically designed grid with ≥80% open area, maximizing light transmission while maintaining load capacity.
✅ Excellent Drainage – Prevents Water Accumulation and Icing
The grid structure allows rain and standing water to drain quickly, with a drainage rate of up to 83.3%. Even during heavy rain, walkways remain dry, eliminating slip hazards from water accumulation or icing.
✅ Hot Dip Galvanized Anti Corrosion – 25 Years Maintenance Free
PV plants are typically exposed to outdoor environments, constantly affected by sun, rain, and wind. Our products undergo hot dip galvanizing with zinc coating thickness strictly controlled at ≥70–85 μm, resisting all kinds of corrosion. Under normal use, they remain maintenance free and replacement free for 25 years, perfectly matching the PV plant’s lifecycle.
✅ Easy Installation – Perfectly Compatible with PV Mounting Systems
Solar walkway grating is relatively light, simple in structure, and easy to install and dismantle. It can be cut and customized on site according to the actual layout of the PV mounting system, requiring no heavy machinery—manual installation is sufficient, greatly reducing construction costs.
Application Scenarios: Full Coverage of PV Plant Types
Thanks to its outstanding performance, solar walkway grating has been widely used in various PV projects:
| Scenario Type | Characteristics | Recommended Specification |
| Ground mounted plants | High mounting structures, elevated work required | G303/30/100, G325/30/100 |

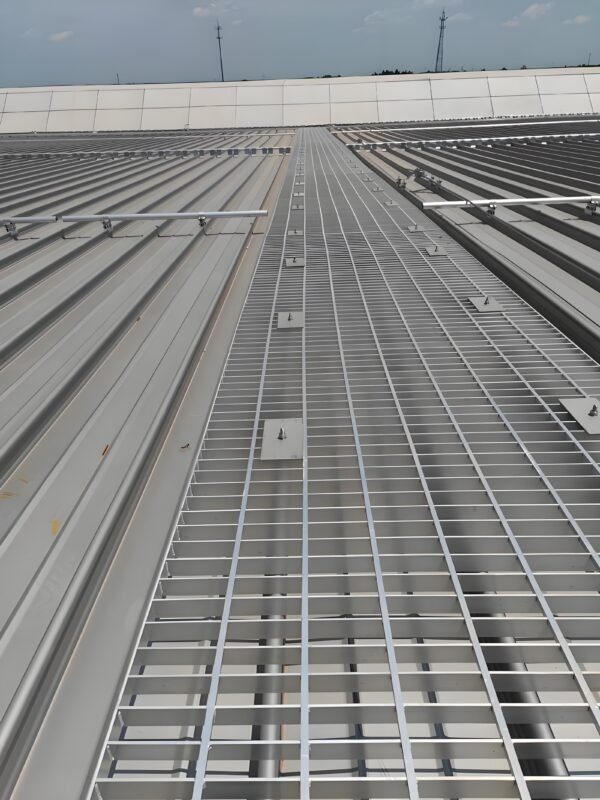

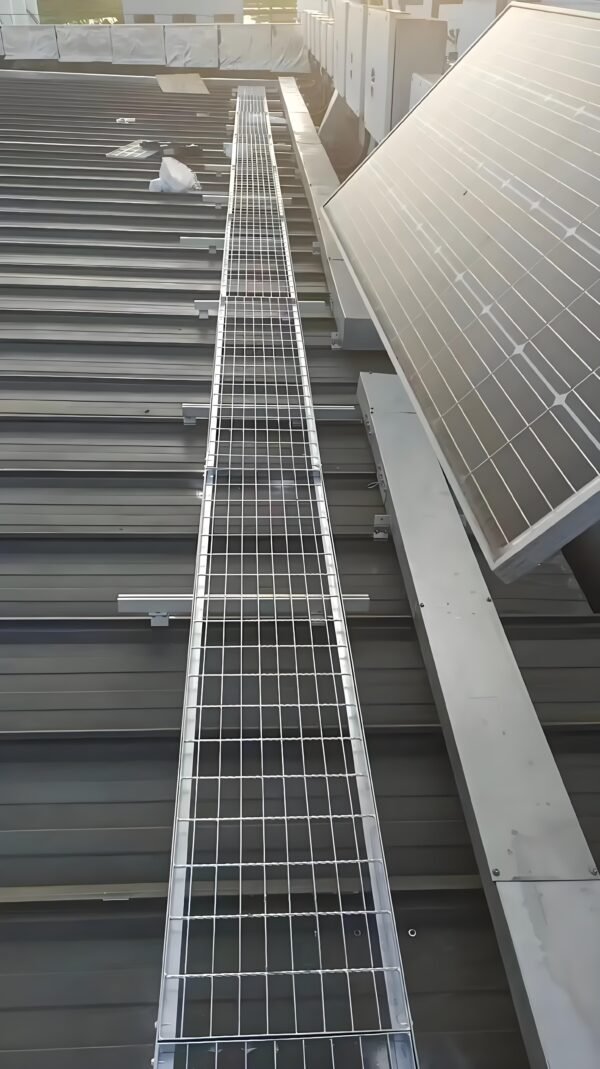

| Distributed rooftop PV | Sloped roofs, high slip resistance needed | G255/30/100S (serrated bars) |
| Mountain / sloped sites | Complex terrain, requires adaptability | G303/30/100 + adjustable supports |
| Fishery PV hybrid | Humid environment, enhanced corrosion protection | G305/30/100, thickened galvanizing |
| BIPV (building integrated) | Aesthetic requirements, coordination with architecture | Press locked type, stainless steel |
Note: “S” indicates serrated (anti slip) surface.
Specifications & Selection Guide
Recommended Common Models
| Model | Bar Size | Application Scenarios | Reference Span |
| G255/30/100 | 25×5 mm | Distributed rooftop, light duty walkways | ≤1200 mm |
| G303/30/100 | 30×3 mm | General PV walkways, universal type | ≤1500 mm |
| G305/30/100 | 30×5 mm | Ground mounted plants, heavy load requirements | ≤1800 mm |
| G323/30/100S | 32×3 mm serrated | High slip resistance, humid environments | ≤1500 mm |
| G325/30/100 | 32×5 mm | Large spans, high load capacity | ≤2000 mm |
| G403/30/100 | 40×3 mm | Dedicated PV power plant walkways | ≤2000 mm |
Material Selection
| Material | Surface Treatment | Application Environment | Service Life |
| Q235 Carbon Steel | Hot dip galvanized (≥70 μm) | Standard PV plants | 20–25 years |
| Q355B High Strength Steel | Hot dip galvanized | Large spans, heavy load requirements | 25–30 years |
| 304 Stainless Steel | Pickling / passivation | Coastal plants, high corrosion environments | 30–50 years |

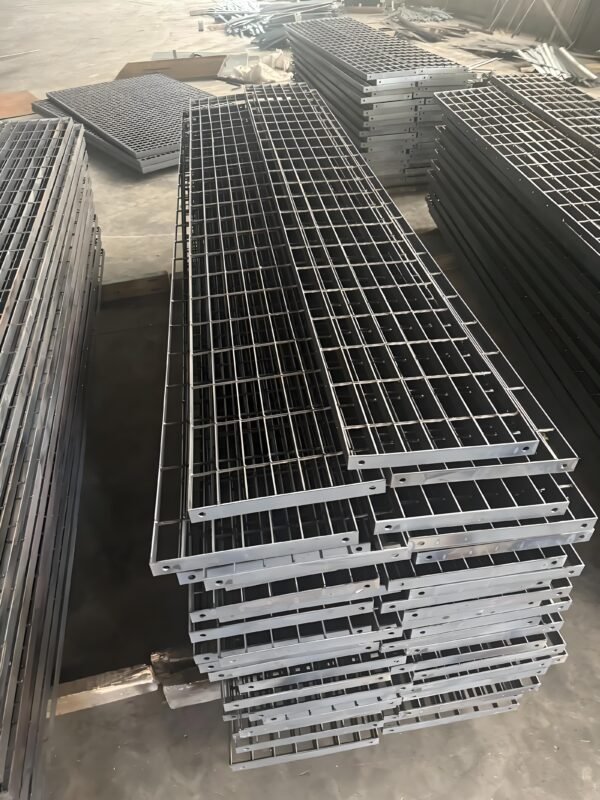

Common Stock Sizes
Standard stock sizes for solar walkway grating include: 600×1000 mm, 800×1000 mm, 1000×1000 mm, 1000×1500 mm, 1200×1000 mm, etc. Any size can be customized according to project requirements.
Installation Essentials: Details Determine Safety & Longevity
The installation quality of solar walkway grating directly affects long term maintenance safety and efficiency. Here are key considerations:
🔧 Span Control
Recommended support spacing ≤ 800 mm to prevent sagging or vibration.
For large spans, use finite element analysis to verify that maximum deflection ≤ L/250.
🧭 Orientation
Bearing bars must run parallel to the walking direction for optimal load bearing performance.
Each end of bearing bars should rest on supports with a minimum length of 25 mm.
🔩 Fixing
Use C type clamps or dedicated stainless steel clamps to securely fasten grating panels.
At least 4 clamps per panel; increase in windy areas or high traffic zones.
Bolt diameter ≥ 8 mm, torque ≥ 10 N·m.
Install edge stop plates at walkway ends to prevent panel displacement or stepping off.
⚡ Lightning Protection (Critical for Rooftop PV)
As metal components, solar walkways must be properly grounded:
Use 25 mm² copper braided straps for cross bonding.
Connect one end to the walkway main beam and the other to the roof lightning protection strip via welding.
DC resistance ≤ 0.05 Ω.
✅ Acceptance Criteria
After applying a 2.5 kN/m² load for 30 minutes, measured deflection ≤ 4 mm.
Walkway width ≥ 600 mm and ≤ 500 mm from module edges.
Horizontal deviation ≤ 3 mm per meter.
Why Choose Us as Your Long Term Supplier?
✅ PV Dedicated Product Line – Precisely Matching Requirements
We have conducted in depth research on the special needs of PV plants and developed a dedicated solar walkway grating product line. Our products are optimized in load capacity, slip resistance, light transmittance, and corrosion protection life—perfectly matching the 25 year lifecycle of PV plants.
✅ Full Industry Chain – Quality Under Control
We operate a complete industry chain from bar rolling and automatic pressure welding to hot dip galvanizing. 5 fully automatic pressure welding lines with monthly capacity >5,000 tons ensure timely delivery of large orders. All products strictly follow standardized process management from raw material procurement to finished product inspection.
✅ Large Hot Dip Galvanizing Workshop – Guaranteed Zinc Coating
Our self operated large scale galvanizing plant features a 14 meter long zinc kettle, capable of handling extra long workpieces. We strictly implement GB/T 13912 2008 with zinc coating thickness ≥70–85 μm and salt spray resistance >2,000 hours—ensuring 25 years maintenance free.
✅ Rigorous Quality Inspection
Weld strength test: Shear resistance 20–40 kN/m², 100% weld penetration.
Slip resistance test: Friction coefficient ≥0.6.
Flatness inspection: Diagonal deviation within ±3 mm.
Load test: On site load testing available upon request.
✅ Extensive PV Project Experience
Our solar walkway grating has been applied in:
Ground mounted plants: Multiple 100 MW scale PV projects.
Distributed rooftop PV: Industrial parks, logistics warehouse roofs.
Fishery PV hybrid projects: Special anti corrosion solutions for humid environments.
Mountain PV plants: Custom designs adapting to complex terrain.
Lifecycle Cost Analysis
| Item | Standard Steel Grating | PV Dedicated Steel Grating | Advantage |
| Initial cost | Slightly lower | Optimized design | Reasonable upfront investment |
| Installation cost | On site cutting, low efficiency | Modular design, quick installation | 30% labor savings |
| Maintenance cycle | Replacement every 10 15 years | 25 years maintenance free | Saves one replacement cycle |
| Power generation impact | High shading ratio | Light transmittance ≥80% | Increased annual energy yield |
| Safety risk | Insufficient slip resistance | Serrated anti slip, accident rate ↓ | Personnel safety guaranteed |
Conclusion: From a lifecycle perspective, PV dedicated steel grating offers far lower total cost than ordinary products—it is the most economical and reasonable choice for PV plant maintenance walkways.
Frequently Asked Questions
Q1: Is steel grating mandatory for PV walkways?
A: Yes. Steel grating offers a combination of ventilation, light transmission, slip resistance, wear resistance, high load capacity, and corrosion resistance—making it the preferred material for PV maintenance walkways. Ordinary steel plates would severely shade PV modules and reduce power generation efficiency.
Q2: Can the 25 year life be guaranteed?
A: Absolutely. Our products are hot dip galvanized with a zinc coating thickness ≥70 μm. Under normal conditions, they achieve >25 years service life, perfectly matching the PV plant’s lifecycle.
Q3: How to prevent grating loosening?
A: We recommend using stainless steel clamps with at least 4 clamps per panel and bolt torque ≥10 N·m. Quarterly inspections are advised to retighten if necessary.
Q4: Can it adapt to sloped roofs?
A: Yes. For sloped roofs we recommend serrated bearing bars (friction coefficient ≥0.6). Adjustable supports can also be used to accommodate various slopes, ensuring a level and comfortable walkway.
Q5: Can sizes be customized?
A: Absolutely. We support deep customization according to the actual layout of your PV mounting system. Please provide drawings or detailed dimensions.
How to Select the Right Solar Walkway Grating for Your Project
Step 1: Determine Plant Type
Ground mounted → G303/30/100, G325/30/100
Rooftop distributed → G255/30/100S (serrated anti slip)
Mountain / sloped → G303/30/100 + adjustable supports
Coastal / high corrosion → 304 stainless steel
Step 2: Determine Load Requirements
Personnel walking, light tools → G255, G303 series
Occasional equipment handling → G305, G325 series
Inspection vehicle passage → custom heavy duty type
Step 3: Measure Installation Dimensions
Walkway width: ≥600 mm recommended
Support spacing: determines bar size
Mounting structure type: match connection method
Step 4: Contact Us with Drawings
Provide your project type, load requirements, and installation environment. Our technical team will deliver a professional solution and quotation within 24 hours.
