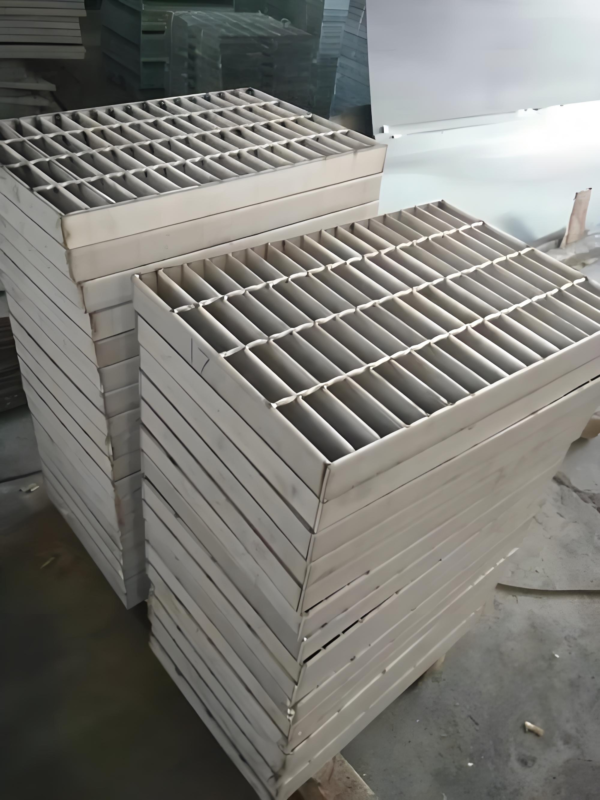

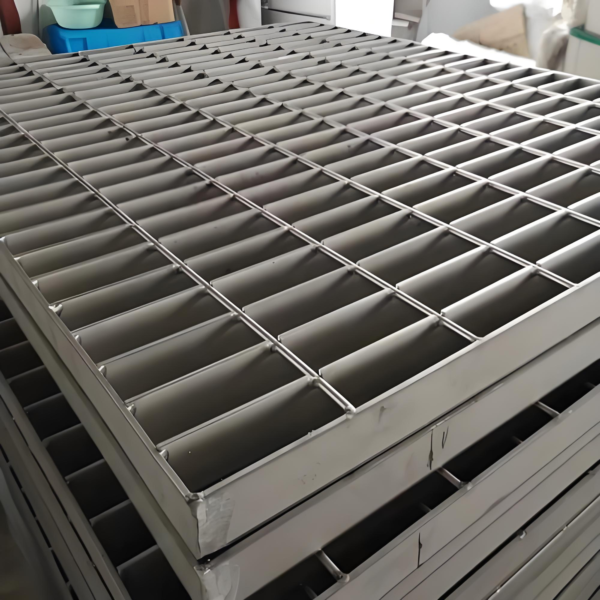

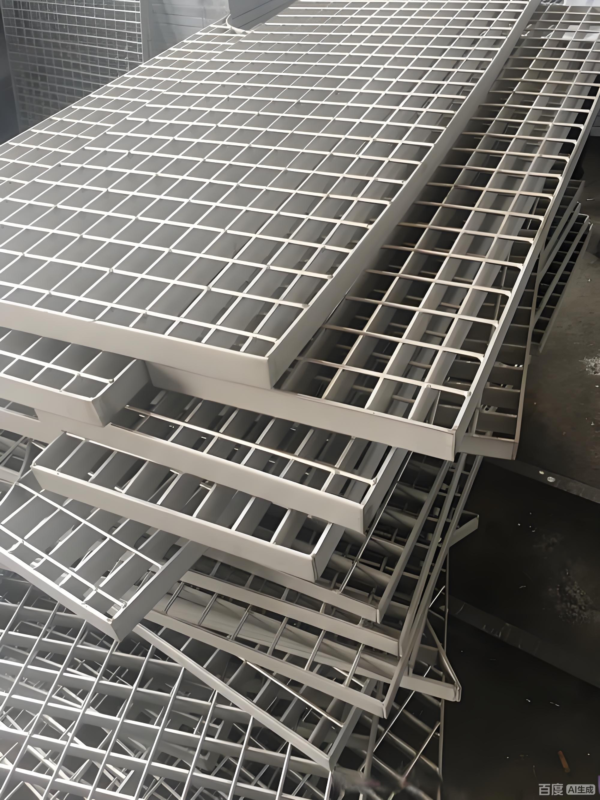

Stainless Steel Drainage Channel Cover | 304/316L Material | Hot-Dip Galvanized Optional | Anti-Theft Hinge Design | Preferred for Municipal/Chemical/Food Grade Drainage

In corrosive environments such as chemical plants, food processing facilities, and coastal municipal projects, ordinary carbon steel drainage covers can rust and perforate within months—compromising drainage efficiency and creating safety hazards. The downtime and material costs from frequent replacement plague project managers.

Stainless Steel Drainage Channel Cover—the drainage solution specifically engineered for high-corrosion, high-cleanliness, and long-life applications.

With 15 years of expertise in stainless steel deep processing, we operate fully automatic resistance pressure welding production lines and electro-polishing surface treatment workshops. From acidic wastewater trenches in chemical plants to sterile floor drains in food processing workshops, from coastal landscape avenues to luxury cruise ship decks, we deliver premium drainage cover solutions featuring never rust, reliable load capacity, and 30+ years maintenance-free performance.

---

What is a Stainless Steel Drainage Channel Cover?

A stainless steel drainage channel cover, also known as a stainless steel trench cover or stainless steel Rainwater grate, is a grid-type cover product manufactured by welding 304 or 316L stainless steel bearing bars and cross bars using resistance pressure welding (or press-locking processes), with optional pickling/passivation or electro-polishing surface treatment.

Compared to traditional cast iron covers or ordinary carbon steel galvanized covers, the greatest advantage of stainless steel drainage covers is: the base material itself provides exceptional corrosion resistance—no reliance on coatings—maintaining structural integrity and appearance even in acidic, alkaline, salt spray, or humid environments.

---

Six Core Advantages: Why Choose Stainless Steel Drainage Channel Covers?

✅ Exceptional Corrosion Resistance – 30-50 Years Without Rust

The core value of stainless steel drainage covers lies in the material itself. We strictly select prime materials from TISCO and Baosteel:

Even in extreme conditions such as strong acids, strong alkalis, or salt spray, stainless steel drainage covers will not experience coating peeling or base metal perforation—truly “install and forget.”

✅ High Load Capacity – Bends Rather Than Breaks for Greater Safety

Manufactured using high-strength stainless steel flat bars (thickness 3-5mm, height 25-50mm) with pressure resistance welding ensuring 100% weld penetration. Depending on bar specifications and spacing, load requirements from 25 tons/m² for pedestrian areas to 140 tons/m² for heavy vehicle lanes can be met.

Unlike brittle cast iron covers, stainless steel covers exhibit “bending deformation” rather than “sudden fracture” under overload—providing visual warning and significantly enhancing safety.

✅ Drainage Rate up to 83.3% – More Than Double That of Cast Iron

The grid structure achieves an open area of up to 83.3% —rainwater, wastewater, and wash water drain quickly into the channel, effectively preventing surface water accumulation and reducing slip hazards. Even during heavy rain, drainage remains smooth.

✅ Anti-Theft Hinge Design – Safe and Convenient

Addressing the pain point of theft in public areas, we offer an anti-theft hinged connection solution: the cover connects to the frame via high-strength stainless steel hinges, allowing easy upward opening for channel cleaning while preventing removal—eliminating theft at the source.

Opening angle up to 120° , maintenance requires no cover removal—one person can operate.

✅ Multiple Surface Treatment Options – Meeting Cleanliness and Aesthetic Requirements

After welding, stainless steel develops oxidation coloring. We provide professional-grade surface treatments:

✅ Light Weight – Easy Installation and Maintenance

Stainless steel drainage covers weigh approximately 50% of cast iron covers—no heavy lifting equipment required; manual handling and installation are sufficient. For routine maintenance, simply open the hinges to clean the channel without removing the cover.

---

Application Scenarios: From Chemical to Food, From Municipal to Marine

Leveraging its exceptional corrosion resistance and high strength, stainless steel drainage covers have been widely used in demanding environments:

---

Specifications & Selection Guide

Common Flat Bar Specifications

Grid Spacing

Manufacturing Process

Custom Sizing

We support deep customization based on customer-provided trench dimensions:

• Any length and width

• Rectangular, curved, special-shaped cutting

• With hinges, locks, or handles

• Brushed, mirror, or sandblasted surfaces

---

Installation Guide

Installation Methods

Installation Essentials

1. Support surface preparation: Both sides of the trench must be flat and firm—levelness deviation ≤3mm/m

2. Gap control: Leave 5-10mm expansion gap between cover and frame

3. Load direction: Bars should be perpendicular to vehicle travel direction (for vehicular traffic)

4. Slip resistance: Serrated bars (models with “S”) recommended for wet areas

5. Hinge maintenance: Periodically lubricate hinges to maintain smooth operation

Acceptance Criteria

• Flatness: Cover height difference from ground ≤±3mm

• Secure fixing: No movement, no abnormal noise

• Drainage test: Water should completely drain within 10 seconds

• Visual inspection: No scratches, no weld slag, passivation film intact

---

Why Choose Us as Your Long-Term Supplier?

✅ Full Industry Chain Control – Traceable Quality

We possess full industry chain capability from stainless steel bar rolling, automatic pressure welding, surface treatment to finished product assembly. All raw materials come from first-tier mills such as TISCO and Baosteel—material certificates provided, ensuring traceability for every cover.

✅ Dual-Process Production Lines – Flexibly Matching Requirements

We operate both welded and press-locked stainless steel grating production lines, enabling us to recommend the most economical process solution based on your load requirements, aesthetic needs, and budget.

✅ Large-Scale Surface Treatment Workshop – Both Appearance and Corrosion Protection

Self-operated pickling/passivation and electro-polishing workshops capable of handling extra-long workpieces. Electro-polished surfaces achieve mirror-like smoothness (Ra≤0.4μm) —no dirt accumulation, meeting food/pharmaceutical grade cleanliness requirements.

✅ Rigorous Quality Inspection

• Weld strength: Shear resistance ≥20kN/m², 100% penetration

• Dimensional accuracy: Length error ≤±3mm, diagonal error ≤±3mm

• Material verification: Spectrographic analysis report provided per batch

• Passivation film test: Blue dot test—ensures no free iron ions

✅ Global Project Experience

Our stainless steel drainage covers have been applied in:

• Major Chinese pharmaceutical group: GMP sterile workshop trench covers (304 electro-polished)

• Marina Bay, Singapore: Coastal landscape avenue rainwater grates (316L)

• Shell Oil: Refinery acidic wastewater trench covers (316L press-locked)

• Multiple food enterprises: EU-exporting food processing plant drainage systems (304 electro-polished)

---

Frequently Asked Questions

Q1: Which is better, stainless steel or cast iron drainage covers?

A: In corrosive environments, high-cleanliness requirements, or theft-prone areas, stainless steel covers are superior to cast iron in every way. Comparison:

Q2: How to choose between 304 and 316L?

A: For standard municipal, food, and general industrial applications—304 is sufficient. For coastal roads, marine engineering, chemical plants, or chloride-containing environments—choose 316L.

Q3: What vehicle load can it handle?

A: Depending on specifications, load capacity ranges from 25 tons/m² to 140 tons/m². For regular vehicle traffic, recommend bars ≥30×5mm with spacing ≤30mm.

Q4: Does it require regular maintenance?

A: The stainless steel material itself requires no rust prevention maintenance. We recommend checking hinges and fixing bolts every six months—tighten if loose. For daily cleaning, high-pressure water washing is sufficient.

Q5: Can non-standard sizes be customized?

A: Yes. Provide trench width, length, load requirements, and environmental conditions. Our technical team will deliver drawings and quotations within 24 hours.

---

[Get Your Custom Stainless Steel Drainage Cover Solution Today]

Stop worrying about corrosion replacement. Stop worrying about cover theft. Stop headaches over cleaning and maintenance.

Choosing our stainless steel drainage channel covers means choosing 30-50 years of peace of mind, never-rust quality, and the trusted choice of national key projects.

Click here to contact our engineers. Inquire today for free selection advice, material samples, and CAD drawing design!
